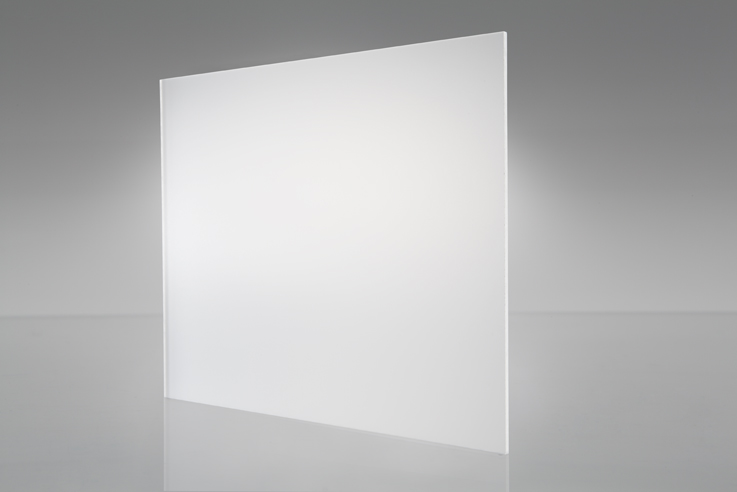

OPTIX 95 Acrylic
OPTIX 95 is a continuously processed acrylic sheet with a matte finish on one side that provides both decoration and reductions in surface reflection. The matte finish is resistant to fingerprints and smudges. OPTIX 95 is easily fabricated and ideal for many interior applications including room/office partitions, pantry/cupboard doors, signage and POP displays.
Stock & Non-Stock Colors
*Colors on screen may not reflect exact matches to physical sheets.
*Custom colors available.
*Non-Stock colors, patterns or sizes may require a minimum quantity order.
Stock & Non-Stock Patterns
- Thickness: .080" - .220"
- Width: 5" - 105"
- Length: 10" - 216"
- Specially formulated 95 LED acrylic effectively diffuses LED hot spots and provides a consistent illumination. Ideal for lighting and interior - backlit signage applications
|Physical||Test method||Units||OPTIX 95|
|Specific Gravity/Relative Density||ASTM D-792||1.19|
|Optical Refractive Index||ASTM D-542||1.49|
|Light Transmission -Total||ASTM D-1003||%||>91|
|Sound Transmission||ASTM E90 / E413||db||27|
|Water Absorption||ASTM D-570||% By wt||0.4|
|Chemical||Test method||Units||OPTIX 95|
|Resistance to Stress - Critical Crazing Stress to: Isopropyl Alcohol||ARTC Modification of MIL-P6997||psi||900|
|Resistance to Stress - Critical Crazing Stress to: Lacquer Thinner||ARTC Modification of MIL-P6997||psi||500|
|Resistance to Stress - Critical Crazing Stress to: Toluene||ARTC Modification of MIL-P6997||psi||1,300|
|Resistance to Stress - Critical Crazing Stress to: Solvesso 100||ARTC Modification of MIL-P6997||psi||1,600|
|Mechanical||Test method||Units||OPTIX 95|
|Tensile Strength||ASTM D-638||psi||11,030|
|Tensile Elongation – Max.||ASTM D-638||%||5.8|
|Tensile Modulus of Elasticity||--||psi||490,000|
|Flexural Strength||ASTM D-790||psi||17,000|
|Flexural Modulus of Elasticity||ASTM D-790||psi||490,000|
|Izod Impact Strength – Molded Notch||ASTM D-256||ft-lb/in Notch||0.4|
|Izod Impact Strength – Milled Notch||ASTM D-256||ft-lb/in Notch||0.28|
|Tensile Impact Strength||ASTM D-1822||ft-lb/in2||20|
|Abrasion Resistance - Change in Haze - 10 cycles||ASTM D-1044||Haze, %||11.2|
|Abrasion Resistance - Change in Haze - 50 cycles||ASTM D-1044||Haze, %||24|
|Abrasion Resistance - Change in Haze - 200 cycles||ASTM D-1044||Haze, %||24.9|
|Rockwell Hardness||ASTM D-785||M-95|
|Thermal||Test method||Units||OPTIX 95|
|Maximum Recommended Continuous Service Temperature||°F||170-190|
|Deflection Temperature @ 264 psi (1.8 MPa)||ASTM D-648||°F||203|
|Deflection Temperature @ 66 psi (0.45 MPa)||ASTM D-648||°F||207|
|Coefficient of Thermal Expansion||ASTM D-696||in/(in-°F ) x 10-5||3.0|
|Thermal Conductivity||ASTM C-177||BTU-ft/(hr-ft2-°F)||0.075|
|Flammability (Burning Rate)||ASTM D-635||In/minute||1.019|
|Smoke Density Rating||ASTM D-2843||%||3.4|
|Self-Ignition Temperature||ASTM D-1929||°F||833|
|Flame Spread Index||ASTM E-84||115|
|Smoke Developed Index||ASTM E-84||550|
These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
