SheetOPTIX IRB - IR Blocking Acrylic

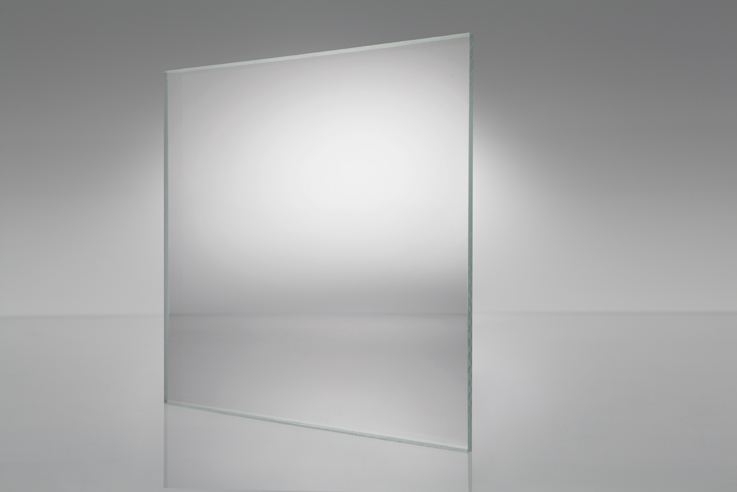

OPTIX IRB is an infrared blocking acrylic sheet that reflects solar radiation, while allowing a high level of natural light. The IR-blocking additive is in the polymer and allows OPTIX IRB to deliver exceptional IR blocking along with impact resistance and weatherability. The result: interiors benefit from natural sunlight without the heat gain. Ideal for skylights, covered walkways and conservatories.

  • Thickness 0.0” – 0.0”
  • Width 0.0” – 0.0”
  • Length 0.0” – 0.0”

Features & Benefits

Available in IRB7 (74% Light transmission) and IRB6 (63% Light Transmission)

Thermal

TEST METHOD

UNITS

OPTIX IRB6

OPTIX IRB7

Coefficient of Thermal Expansion

ASTM D-696

in/(in-°F ) x 10-5

3.0

3.0

Melting Temperature

°F

300-315

300-315

Smoke Developed Index

ASTM E-84

550

550

Deflection Temperature @ 264 psi (1.8 MPa)

ASTM D-648

°F

203

203

Deflection Temperature @ 66 psi (0.45 MPa)

ASTM D-648

°F

207

207

Softening Temperature

°F

210-220

210-220

Thermal Conductivity

ASTM C-177

BTU-ft/(hr-ft2-°F)

0.075

0.075

Maximum Recommended Continuous Service Temperature

°F

170-190

170-190

Flame Spread Index

ASTM E-84

115

115

Flammability

UL 94

HB

HB

Flammability (Burning Rate)

ASTM D-635

In/minute

1.019

1.019

Self-Ignition Temperature

ASTM D-1929

°F

833

833

Smoke Density Rating

ASTM D-2843

%

3.4

3.4

Mechanical

TEST METHOD

UNITS

OPTIX IRB6

OPTIX IRB7

Tensile Impact Strength

ASTM D-1822

ft-lb/in2

20

20

Tensile Elongation – Max.

ASTM D-638

%

5.8

5.8

Izod Impact Strength – Milled Notch

ASTM D-256

ft-lb/in Notch

0.28

0.28

Abrasion Resistance - Change in Haze - 0 cycles

ASTM D-1044

Haze, %

0

0

Abrasion Resistance - Change in Haze - 50 cycles

ASTM D-1044

Haze, %

24

24

Abrasion Resistance - Change in Haze - 200 cycles

ASTM D-1044

Haze, %

24.9

24.9

Flexural Strength

ASTM D-790

psi

17,000

17,000

Flexural Modulus of Elasticity

ASTM D-790

psi

490,000

490,000

Tensile Modulus of Elasticity

--

psi

490,000

490,000

Tensile Strength

ASTM D-638

psi

11,030

11,030

Rockwell Hardness

ASTM D-785

M-95

M-95

Abrasion Resistance - Change in Haze - 10 cycles

ASTM D-1044

Haze, %

11.2

11.2

Izod Impact Strength – Molded Notch

ASTM D-256

ft-lb/in Notch

0.4

0.4

Chemical

TEST METHOD

UNITS

OPTIX IRB6

OPTIX IRB7

Resistance to Stress - Critical Crazing Stress to: Lacquer Thinner

ARTC Modification of MIL-P6997

psi

500

500

Resistance to Stress - Critical Crazing Stress to: Toluene

ARTC Modification of MIL-P6997

psi

1,300

1,300

Resistance to Stress - Critical Crazing Stress to: Solvesso 100

ARTC Modification of MIL-P6997

psi

1,600

1,600

Resistance to Stress - Critical Crazing Stress to: Isopropyl Alcohol

ARTC Modification of MIL-P6997

psi

900

900

Physical

TEST METHOD

UNITS

OPTIX IRB6

OPTIX IRB7

Light Transmission -Total

ASTM D-1003

%

63

74

Solar Transmission

--

%

47

49

Shading Coefficient

--

0.54

0.56

Sound Transmission

ASTM E90 / E413

db

27

27

Light to Solar Gain Ratio

--

1.22

1.35

Optical Refractive Index

ASTM D-542

1.49

1.49

Specific Gravity/Relative Density

ASTM D-792

1.19

1.19

Water Absorption

ASTM D-570

% By wt

0.4

0.4

Download

**Applicable to the acrylic substrate

These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
