FABBACK® Colored Acrylic Mirror
FABBACK color acrylic mirror sheet is made from OPTIX continuously processed acrylic sheet. Using vacuum metalizing, each sheet is given a mirror finish that is protected by the industry’s toughest, most durable backing. An overage of 1” is provided on standard sheet sizes for maximum yield when laser cutting, and all mirror acrylic colored sheet is covered by a 3-mil laser cuttable film. 19 stocked colors with custom colors and sizes available.
Run-to-Size Capabilities
- THICKNESS 0.060" – 0.236"
- WIDTH 5" – 80"
- LENGTH 10" – 120"
- Opaque
- Indoor
Available Colors
Custom colors available.
**Colors on screen may not reflect exact matches to physical sheets.
*Non-Stock colors, patterns or sizes may require a minimum quantity order.
Features & Benefits
Features the industry's toughest protective back coating
All mirrored acrylic sheet is supplied with a 1" overage on length and width
Custom sizes, colors and thicknesses available
2404 Bronze and 2064 Gray available in .236" thickness
| REQUEST | ITEM # | COLORS | PATTERN/TEXTURES | MASKING | THICKNESS (in.) | SIZE (in.) | SQ FT | PACK QTY | SKID QTY |
|---|---|---|---|---|---|---|---|---|---|
 |
C100046M | Bronze - 2404 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100083M | Gray / Smoke - 2064 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100431M | Gray / Smoke - 1050 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100494M | Red - 1310 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100495M | Teal - 2120 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100514M | Yellow - 2208 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100515M | Orange - 1119 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100516M | Bronze - 1600 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100518M | Blue - 1000 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100521M | Pink - 1450 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100522M | Purple - 1020 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100523M | Amber - 2422 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100525M | Green - 2414 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100526M | Blue - 2069 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100527M | Red - 2423 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100529M | Red - 1400 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100938M | Gold - 1300 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100941M | Blue - 2424 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|
C100947M | Green - 4674 | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 | ||
|

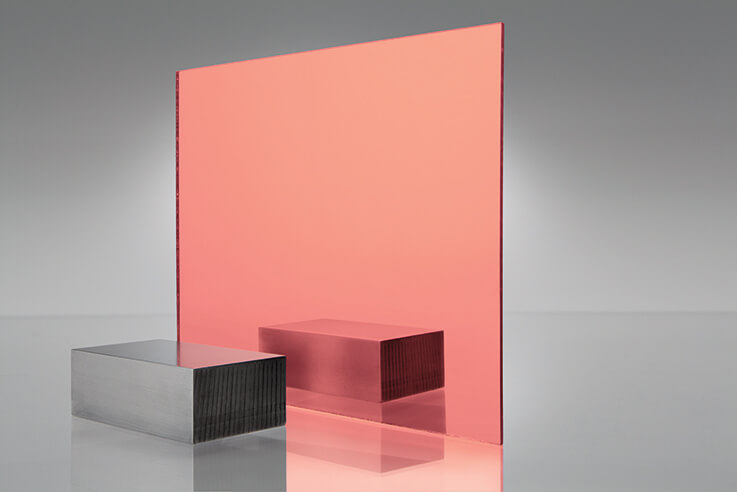

C101118M | Rose Gold - 1350 | Mirror | Polyfilm 3mil - Laser cuttable | .118 | 48” x 96.5” | 32.167 | 80 |
Physical |
TEST METHOD |
UNITS |
FABBACK |
|---|---|---|---|
Specific Gravity/Relative Density |
ASTM D792 |
1.19 |
|
Water Absorption |
ASTM D570 |
% |
0.4 |
Mechanical |
TEST METHOD |
UNITS |
FABBACK |
|---|---|---|---|
Tensile Strength |
ASTM D638 |
psi |
**11,030 |
Tensile Modulus of Elasticity |
ASTM D638 |
psi |
**490,000 |
Flexural Strength |
ASTM D790 |
psi |
**17,000 |
Izod Impact Strength – Molded Notch |
ASTM D256 |
ft-lb/in Notch |
**0.4 |
Rockwell Hardness |
ASTM D785 |
**M-95 |
Thermal |
TEST METHOD |
UNITS |
FABBACK |
|---|---|---|---|
Maximum Recommended Continuous Service Temperature |
°F |
160 |
|
Softening Temperature |
°F |
210-220 |
|
Melting Temperature |
°F |
300-315 |
|
Deflection Temperature @ 264 psi (1.8 MPa) |
ASTM D648 |
°F |
203 |
Deflection Temperature @ 66 psi (0.45 MPa) |
ASTM D648 |
°F |
207 |
Coefficient of Thermal Expansion |
ASTM D696 |
in/in/°F |
3.0x10-5 |
Flammability (Burning Rate) |
ASTM D635 |
in/minute |
1.019 |
Smoke Density Rating |
ASTM D2843 |
% |
3.4 |
Self-Ignition Temperature |
ASTM D1929 |
°F |
833 |
**Applicable to the acrylic substrate
These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
