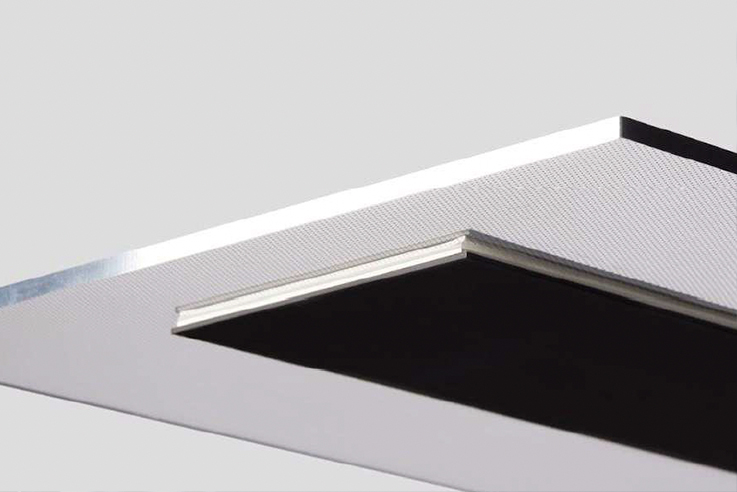

JUNGBECKER LGP (Light Guide Panel)
JUNGBECKER LGP (Light Guide Panel) distributes light introduced from the edges uniformly across the surface using integrated prismatic optics. Rather than diffusing the light, these optical structures control it through reflection and refraction within the microprisms. The direct light component is typically de-glared to enhance visual comfort.
Temperature Range
-40°C up to +80°C (Acrylic)
Transmittance
92% (Acrylic Clear)
Dimensions
Length: max. 1490 mm (58.66 in)
Width: max. 620 mm (24.41 in)
Thickness: 3mm - 6mm (8mm upon request)
Customization Options
Specific cuts and optional polished edge treatment
Only Available in NA
Features & Benefits
Decouples light fed in from the edge, uniformly and directed across the wide surface area
Light extraction through a calculated combination of light refraction and total internal reflection of the integrated optical elements
About 40% of light indirectly in a batwing (structured surface)
About 60% downlight, de-glared (smooth surface)
Applications
Commercial Lighting
Residential Lighting
