LightingKSH-15 Acrylic Lighting Panels

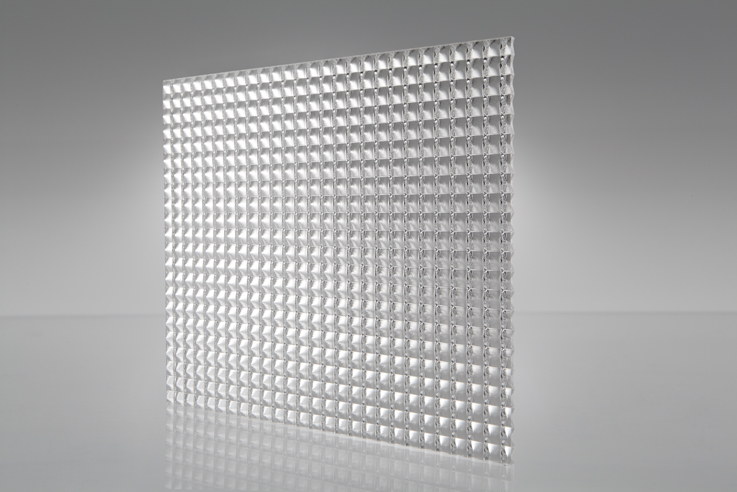

Designed for today's sophisticated work environments, the KSH-15 is an acrylic prismatic lighting panel with a bold, 3/8" square base, female conical prism. It provides excellent efficiency and direct glare control, while maintaining a high level of visual comfort. KSH-15 is suitable for use in large areas. Custom-cut lenses are available.

  • Thickness .200” – .200”
  • Width 23.750” – 23.750”
  • Length 50” – 47.750”
  • Translucent
  • Indoor
  • Outdoor
Available Colors Custom colors available.
  • Clear

*Colors on screen may not reflect exact matches to physical sheets.

*Non-Stock colors, patterns or sizes may require a minimum quantity order.

Features & Benefits

Recessed prismatic pattern of 3/8" square based female cones running parallel and perpendicular to the length and width of the panel

Has rigid structural characteristics needed to span the extra-wide luminaires while maintaining a flawless flat appearance

Available in .200" thickness

Sheet sizes include 23.75" x 47.75", 48" x 96" & 50" x 51"

ITEM # COLORS PATTERN/TEXTURES MASKING THICKNESS (in.) SIZE (in.) SQ FT PACK QTY SKID QTY REQUEST
155100-1 Clear 3/16" Sq. Base Female Conical Prism No Masking .200 23.750” x 47.750” 7.875 150
155112-1 Clear 3/16" Sq. Base Female Conical Prism No Masking .200 48” x 96” 32 50
155115-1 Clear 3/16" Sq. Base Female Conical Prism No Masking .200 50” x 51” 17.708 150
