OPTIX 95 Acrylic
OPTIX 95 is a continuously processed acrylic sheet with a matte finish on one side that provides both decoration and reductions in surface reflection. The matte finish is resistant to fingerprints and smudges. OPTIX 95 is easily fabricated and ideal for many interior applications including room/office partitions, pantry/cupboard doors, signage and POP displays.
- Thickness 0.118” – 0.22”
- Width 48.0” – 51.0”
- Length 96.0” – 100.0”
- Translucent
- Indoor

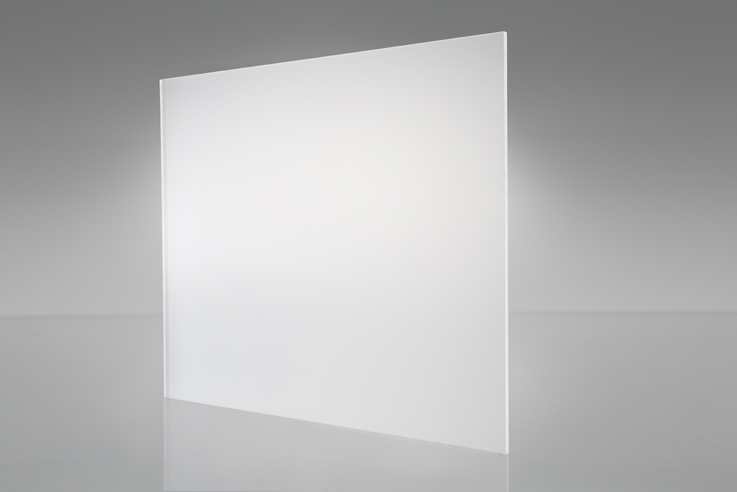

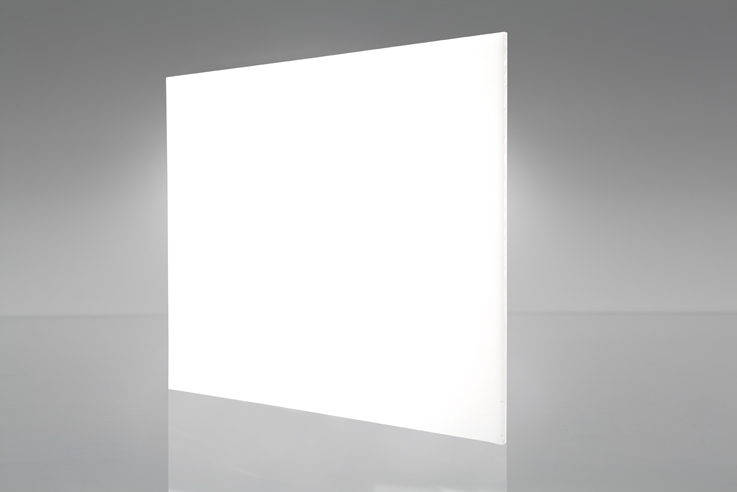

Available Colors
Custom colors available.
*Colors on screen may not reflect exact matches to physical sheets.
*Non-Stock colors, patterns or sizes may require a minimum quantity order.
Features & Benefits
Specially formulated 95 LED acrylic effectively diffuses LED hot spots and provides a consistent illumination. Ideal for lighting and interior - backlit signage applications.
| ITEM # | COLORS | PATTERN/TEXTURES | MASKING | THICKNESS (in.) | SIZE (in.) | SQ FT | PACK QTY | SKID QTY | REQUEST |
|---|---|---|---|---|---|---|---|---|---|
| P951001A | Clear | Matte Finish - 1 Side | Papermask - Printed/Papermask - Plain | 0.118 | 48.0” x 96.0” | 32 | 50 |  |
|
| P952008A | Clear | Matte Finish - 1 Side | Papermask - Printed/Papermask - Plain | 0.118 | 51.0” x 100.0” | 35.4 | 50 | |
|
| P951003A | Clear | Matte Finish - 1 Side | Papermask - Printed/Papermask - Plain | 0.22 | 48.0” x 96.0” | 32 | 25 | |
Mechanical |
TEST METHOD |
UNITS |
OPTIX 95 |
|---|---|---|---|
Tensile Modulus of Elasticity |
-- |
psi |
490,000 |
Tensile Strength |
ASTM D-638 |
psi |
11,030 |
Flexural Modulus of Elasticity |
ASTM D-790 |
psi |
490,000 |
Rockwell Hardness |
ASTM D-785 |
M-95 |
|
Tensile Elongation – Max. |
ASTM D-638 |
% |
5.8 |
Izod Impact Strength – Molded Notch |
ASTM D-256 |
ft-lb/in Notch |
0.4 |
Abrasion Resistance - Change in Haze - 10 cycles |
ASTM D-1044 |
Haze, % |
11.2 |
Flexural Strength |
ASTM D-790 |
psi |
17,000 |
Abrasion Resistance - Change in Haze - 50 cycles |
ASTM D-1044 |
Haze, % |
24 |
Abrasion Resistance - Change in Haze - 200 cycles |
ASTM D-1044 |
Haze, % |
24.9 |
Izod Impact Strength – Milled Notch |
ASTM D-256 |
ft-lb/in Notch |
0.28 |
Tensile Impact Strength |
ASTM D-1822 |
ft-lb/in2 |
20 |
Thermal |
TEST METHOD |
UNITS |
OPTIX 95 |
|---|---|---|---|
Flammability (Burning Rate) |
ASTM D-635 |
In/minute |
1.019 |
Melting Temperature |
°F |
300-315 |
|
Coefficient of Thermal Expansion |
ASTM D-696 |
in/(in-°F ) x 10-5 |
3.0 |
Self-Ignition Temperature |
ASTM D-1929 |
°F |
833 |
Smoke Density Rating |
ASTM D-2843 |
% |
3.4 |
Smoke Developed Index |
ASTM E-84 |
550 |
|
Thermal Conductivity |
ASTM C-177 |
BTU-ft/(hr-ft2-°F) |
0.075 |
Deflection Temperature @ 264 psi (1.8 MPa) |
ASTM D-648 |
°F |
203 |
Deflection Temperature @ 66 psi (0.45 MPa) |
ASTM D-648 |
°F |
207 |
Flame Spread Index |
ASTM E-84 |
115 |
|
Softening Temperature |
°F |
210-220 |
|
Maximum Recommended Continuous Service Temperature |
°F |
170-190 |
Physical |
TEST METHOD |
UNITS |
OPTIX 95 |
|---|---|---|---|
Optical Refractive Index |
ASTM D-542 |
1.49 |
|
Specific Gravity/Relative Density |
ASTM D-792 |
1.19 |
|
Light Transmission -Total |
ASTM D-1003 |
% |
>91 |
Sound Transmission |
ASTM E90 / E413 |
db |
27 |
Water Absorption |
ASTM D-570 |
% By wt |
0.4 |
Chemical |
TEST METHOD |
UNITS |
OPTIX 95 |
|---|---|---|---|
Resistance to Stress - Critical Crazing Stress to: Lacquer Thinner |
ARTC Modification of MIL-P6997 |
psi |
500 |
Resistance to Stress - Critical Crazing Stress to: Solvesso 100 |
ARTC Modification of MIL-P6997 |
psi |
1,600 |
Resistance to Stress - Critical Crazing Stress to: Toluene |
ARTC Modification of MIL-P6997 |
psi |
1,300 |
Resistance to Stress - Critical Crazing Stress to: Isopropyl Alcohol |
ARTC Modification of MIL-P6997 |
psi |
900 |
Download
**Applicable to the acrylic substrate
These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
