Sheet OPTIX® LD - Light Diffusing Acrylic

OPTIX® LD light diffusing acrylic sheet provides superior diffusion properties that allow for greater sign design flexibility and slim profile channel (CAN) letters, all with fantastic impact resistance and weatherability. Visible hot spots and luminance fluctuations are eliminated without affecting the light transmission properties. Offered in a wide variety of stock sizes, colors, SG05 medium impact and non-glare.

Run-to-Size Capabilities

  • THICKNESS .118" – .177"
  • WIDTH 48" – 104"
  • LENGTH 16" – 216"
  • Translucent
  • Indoor
  • Outdoor

Available Colors

View More + View Less —

Custom colors available.

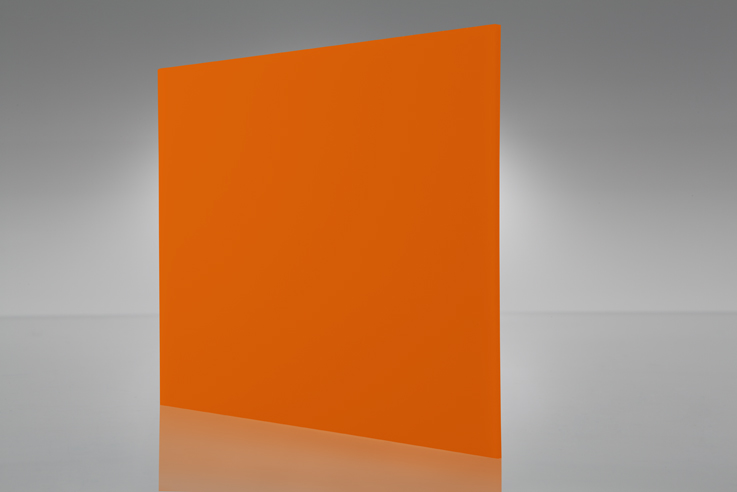

  • Orange - 2119 LD
  • Red - 2283 LD

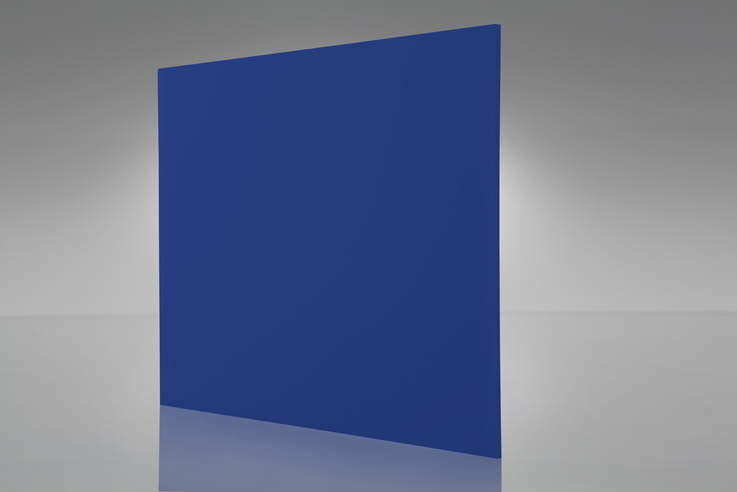

  • Blue - 2050 LD
  • Yellow - 2037 LD

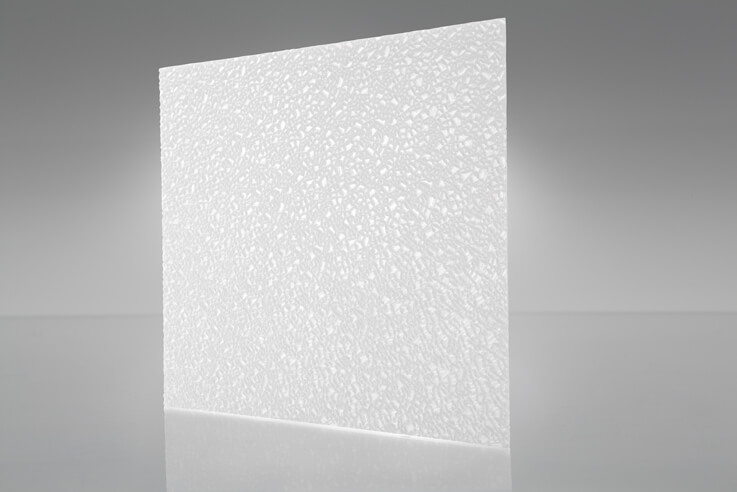

  • White - 2447

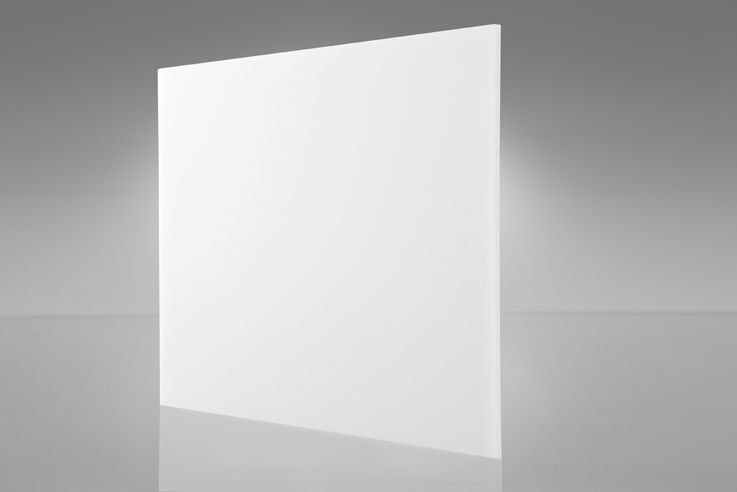

  • White - 7328
  • Red - 2283 LD

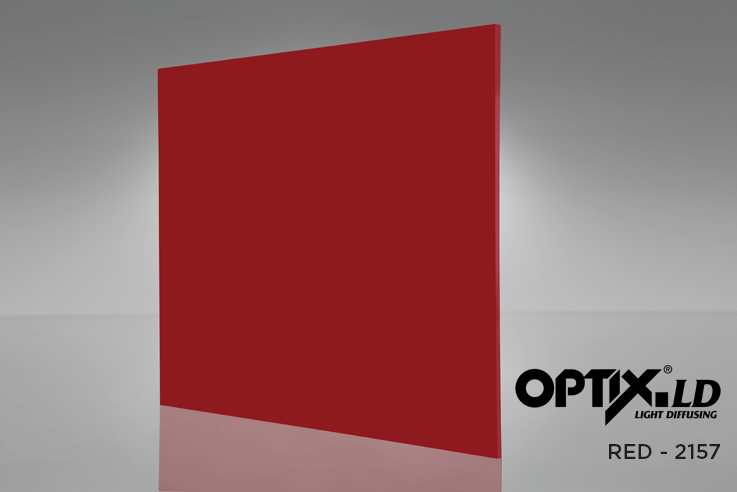

  • Red - 2157 LD

**Colors on screen may not reflect exact matches to physical sheets.

*Non-Stock colors, patterns or sizes may require a minimum quantity order.

Features & Benefits

View More + View Less —

OPTIX LD MAX 2406 White acrylic is the superior choice for decorative vinyl applications that require the maximum light output and superior light transmission

Available in SG05 impact and with a Non-Glare finish

REQUEST ITEM # COLORS PATTERN/TEXTURES MASKING THICKNESS (in.) SIZE (in.) SQ FT PACK QTY SKID QTY
open 1X04022A Yellow - 2037 Papermask - Printed .118 48” x 96” 32 5
open 1X04026A Red - 2283 Papermask - Printed .118 48” x 96” 32 5
open 1X04028A Red - 2793 Papermask - Printed .118 48” x 96” 32 5
open 1X04029A Red - 2157 Papermask - Printed .118 48” x 96” 32 5
open 1X04031A Blue - 2114 Papermask - Printed .118 48” x 96” 32 5
open 1X48233A White - 7328 Papermask .118 51” x 100” 35.417 48
open 1X55052A White - 7328 SG05 - Medium Impact Polyfilm 2mil - Clear .118 51” x 100” 35.417 48
open 1X72156A White - 2406 Polyfilm .118 51” x 100” 35.417 28
open 1X91060A Green - 7235 Polyfilm .118 48” x 96” 32 28
open 1X91061A Yellow - 8197 Polyfilm .118 48” x 96” 32 28
open 1X92005A Red - 2283 Papermask - Printed .118 48” x 96” 32 48
open 1X93005A Yellow - 2037 Papermask - Printed .118 48” x 96” 32 48
open 1X94003A Blue - 2050 Papermask - Printed .118 48” x 96” 32 48
open 1X95005A Blue - 2114 Papermask - Printed .118 48” x 96” 32 48
open 1X97003A White - 2447 Papermask .118 51” x 100” 35.417 48
open 1X04023A Yellow - 2037 Papermask - Printed .177 48” x 96” 32 3
open 1X04025A Blue - 2114 Papermask - Printed .177 48” x 96” 32 3
open 1X04027A Red - 2283 Papermask - Printed .177 48” x 96” 32 3
open 1X04030A Red - 2157 Papermask - Printed .177 48” x 96” 32 3
open 1X10051A Red - 2793 SG05 - Medium Impact Papermask - Printed .177 72” x 96” 48 28
open 1X11251A White - 2447 SG05 - Medium Impact Polyfilm .177 75” x 100” 52.083 28
open 1X11410A White - 2406 SG05 - Medium Impact Polyfilm .177 75” x 100” 52.083 28
open 1X11414A White - 2406 SG05 - Medium Impact Polyfilm .177 51” x 100” 35.417 28
open 1X11416A White - 2406 SG05 - Medium Impact Polyfilm .177 75” x 125” 65.104 25
open 1X20077A Red - 2793 SG05 - Medium Impact Papermask - Printed .177 75” x 125” 65.104 28
open 1X21572A Orange - 2119 SG05 - Medium Impact Polyfilm .177 51” x 100” 35.417 28
open 1X21573A Orange - 2119 SG05 - Medium Impact Polyfilm .177 75” x 100” 52.083 28
open 1X52618A Red - 2793 SG05 - Medium Impact Papermask - Printed .177 75” x 100” 52.083 28
open 1X72157A White - 2406 Polyfilm .177 51” x 100” 35.417 28
open 1X91000A Red - 2793 Papermask - Printed .177 75” x 100” 52.083 28
open 1X91001A Red - 2793 Papermask - Printed .177 51” x 100” 35.417 28
open 1X91002A Red - 2793 Papermask - Printed .177 48” x 96” 32 28
open 1X91003A Red - 2793 Papermask - Printed .177 48” x 96” 32 7
open 1X91013A Red - 2793 Polyfilm .177 48” x 96” 32 28
open 1X92000A Red - 2283 Papermask - Printed .177 75” x 100” 52.083 28
open 1X92001A Red - 2283 Papermask - Printed .177 51” x 100” 35.417 28
open 1X92002A Red - 2283 Papermask - Printed .177 48” x 96” 32 28
open 1X92012A Red - 2283 SG05 - Medium Impact Polyfilm .177 51” x 100” 35.417 57
open 1X92013A Red - 2283 SG05 - Medium Impact Polyfilm .177 75” x 100” 52.083 28
open 1X92024A Red - 2283 Polyfilm .177 48” x 96” 32 28
open 1X93000A Yellow - 2037 Papermask - Printed .177 75” x 100” 52.083 28
open 1X93001A Yellow - 2037 Papermask - Printed .177 51” x 100” 35.417 28
open 1X93002A Yellow - 2037 Papermask - Printed .177 48” x 96” 32 28
open 1X94001A Blue - 2050 Papermask - Printed .177 48” x 96” 32 28
open 1X95002A Blue - 2114 Papermask - Printed .177 48” x 96” 32 28
open 1X95010A Blue - 2114 Polyfilm .177 48” x 96” 32 28
open 1X97001A White - 2447 Papermask - Printed .177 51” x 100” 35.417 28
open 1X97002A White - 2447 Papermask - Printed .177 75” x 100” 52.083 28
