VIVAK® PETG (North America sales only)
VIVAK offers a unique balance of physical properties and ease of fabrication. It is ideally suited for complex parts requiring fabrication, including deep thermoforming draws and precise molded-in details. VIVAK PETG is produced using resin that complies with FDA requirements for food contact applications.
This product is branded VIVAK® in North American markets.
Run-to-Size Capabilities
- THICKNESS 0.020" – 0.500"
- WIDTH 24" – 48"
- LENGTH 14" – 216"
- FDA Compliant
- Transparent
- Food Grade
- Indoor
Available Colors
Custom colors available.
**Colors on screen may not reflect exact matches to physical sheets.
*Non-Stock colors, patterns or sizes may require a minimum quantity order.
Features & Benefits
Easily decorated by painting, silk screening or hot stamping
Custom sizes and thicknesses available
Available in clear, colors and WITH Satin finish
| REQUEST | ITEM # | COLORS | PATTERN/TEXTURES | MASKING | THICKNESS (in.) | SIZE (in.) | SQ FT | PACK QTY | SKID QTY |
|---|---|---|---|---|---|---|---|---|---|
 |
PE20025A | Clear | Joggable Film | .020 | 48” x 96” | 32 | 240 | ||
|
PE20033A | Clear | Joggable Film | .020 | 48” x 72” | 24 | 240 | ||
|
PE20027A | Clear | Joggable Film | .030 | 48” x 96” | 32 | 170 | ||
|
PE20034A | Clear | Joggable Film | .030 | 48” x 72” | 24 | 170 | ||
|
PE20005A | Clear | Joggable Film | .040 | 48” x 96” | 32 | 120 | ||
|
PE20035A | Clear | Joggable Film | .040 | 48” x 72” | 24 | 120 | ||
|
P350031A | Clear | Satin | Joggable Film/Clear Hi-Tak Film | .060 | 48” x 96” | 32 | 10 | |
|
PE20006A | Clear | Joggable Film | .060 | 48” x 96” | 32 | 160 | ||
|
PE20039A | Clear | Joggable Film | .060 | 48” x 72” | 24 | 160 | ||
|
PE22000A | Clear | Joggable Film | .060 | 60” x 96” | 40 | 64 | ||
|
PE50008A | Clear | Satin | Joggable Film/Clear Hi-Tak Film | .060 | 48” x 96” | 32 | 120 | |
|
PE20007A | Clear | Joggable Film | .080 | 48” x 96” | 32 | 120 | ||
|
PE20009A | Clear | Joggable Film | .100 | 48” x 96” | 32 | 100 | ||
|
PE20010A | Clear | Clear | Joggable Film | .118 | 48” x 96” | 32 | 80 | |
|
PE22002A | Clear | Joggable Film | .118 | 60” x 96” | 40 | 32 | ||
|
PE20011A | Clear | Joggable Film | .177 | 48” x 96” | 32 | 54 | ||
|
PE22003A | Clear | Joggable Film | .177 | 60” x 96” | 40 | 22 | ||
|
PE20019A | Clear | Joggable Film | .220 | 48” x 96” | 32 | 45 | ||
|
PE20012A | Clear | Joggable Film | .236 | 48” x 96” | 32 | 20 | ||
|
PE20013A | Clear | Joggable Film | .375 | 48” x 96” | 32 | 13 | ||
|
PE21092A | Clear | MVM White Film | .500 | 48” x 96” | 32 | 15 | ||
|

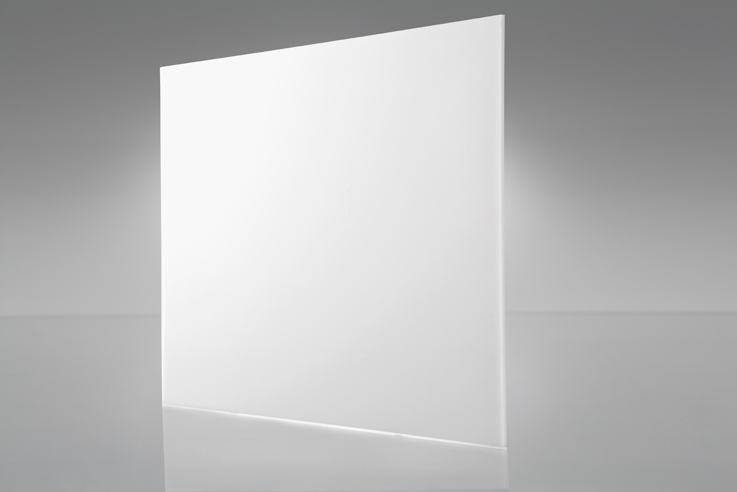

VIVAK_B26 White | White | |||||||
|
VIVAK_I55 Smoke | Gray / Smoke - 1050 | |||||||
|

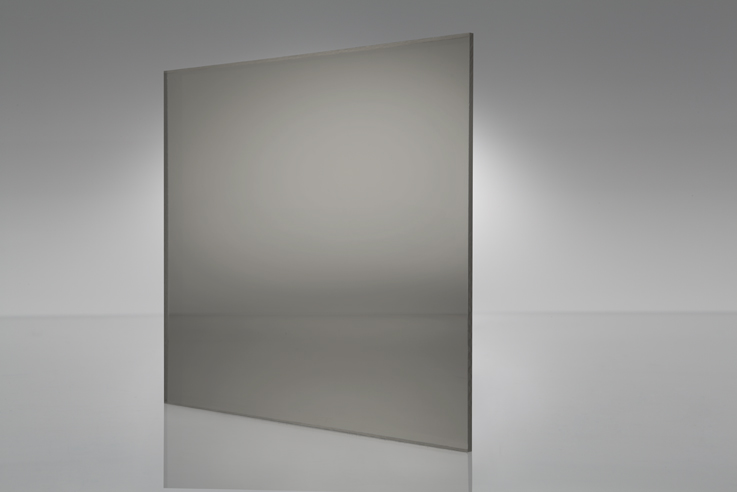

VIVAK_K95 Bronze | Bronze - K95 | |||||||
|

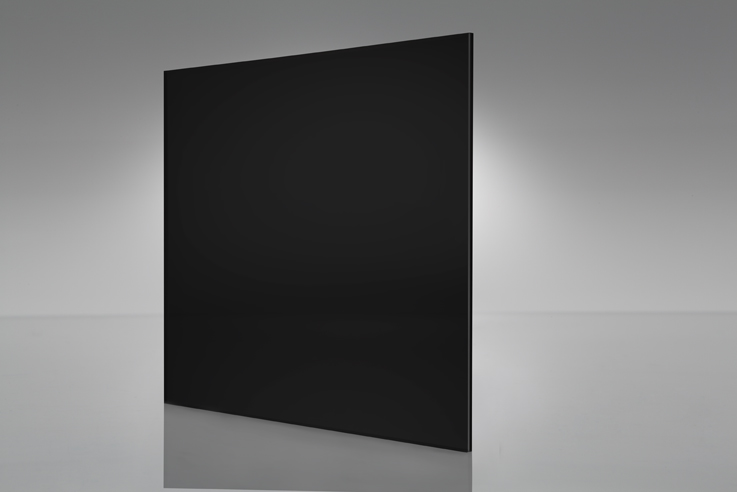

VIVAK_L20 Black | Black - Color |
Physical |
TEST METHOD |
UNITS |
VIVAK PETG |
|---|---|---|---|
Specific Gravity/Relative Density |
ASTM D792 |
1.27 |
|
Optical Refractive Index |
ASTM D542 |
1.57 |
|
Light Transmission -Total |
ASTM D1003 |
% |
86 |
Light Transmission - Haze |
ASTM D1003 |
% |
1.0 |
Water Absorption |
ASTM D570 |
% |
0.2 |
Mechanical |
TEST METHOD |
UNITS |
VIVAK PETG |
|---|---|---|---|
Tensile Strength |
ASTM D638 |
psi |
7,700 |
Tensile Modulus of Elasticity |
ASTM D638 |
psi |
320,300 |
Flexural Strength |
ASTM D790 |
psi |
11,200 |
Flexural Modulus of Elasticity |
ASTM D790 |
psi |
310,000 |
Dielectric Constant @1kHz |
ASTM D150 |
2.6 |
|
Dielectric Constant @1mHz |
ASTM D150 |
2.4 |
|
Dielectric Strength |
ASTM D149 |
volts/mil |
410 |
Compressive Strength |
ASTM D695 |
psi |
8,000 |
Shear Strength |
ASTM D732 |
psi |
9,000 |
Izod Impact Strength – Molded Notch |
ASTM D256 |
ft-lb/in Notch |
1.7 |
Izod Impact Strength – Milled Notch |
ASTM D256 |
ft-lb/in Notch |
1.2 |
Drop Dart Impact |
ASTM D3763 |
ft-lbs |
22 |
Rockwell Hardness |
ASTM D785 |
R-115 |
Thermal |
TEST METHOD |
UNITS |
VIVAK PETG |
|---|---|---|---|
Deflection Temperature @ 264 psi (1.8 MPa) |
ASTM D648 |
°F |
157 |
Deflection Temperature @ 66 psi (0.45 MPa) |
ASTM D648 |
°F |
164 |
Coefficient of Thermal Expansion |
ASTM D696 |
in/in/°F |
3.8x10-5 |
Thermal Conductivity |
ASTM E1225 |
BTU-ft/ft2/hr/°F |
0.13 |
Flammability (Burning Rate) |
ASTM D635 |
in/minute |
0.06 |
Flammability |
UL 94 |
HB |
|
Smoke Density Rating |
ASTM D2843 |
% |
53.8 |
Self-Ignition Temperature |
ASTM D1929 |
°F |
880 |
Flame Spread Index |
ASTM E84 |
85 |
|
Smoke Developed Index |
ASTM E84 |
450 |
|
Glass Transition Temperature |
ASTM D3418 |
°F |
178 |
**Applicable to the acrylic substrate
These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
